The coil Wrapping machine is applied in various type of products including PVC Wires & Cables, Stitching wire Coil, Braided Pipe Coil, Vehicle Tyres,
Pneumatic Pipe Bundles, Welding Wire Coils, paper reels, Sheet Metal Coils, Laminate Rolls for packing purpose.
Steel Wrapping Machine, Steel Bars Wrapping Machine, are used in Steel Industries. In PVC Wires & Cables Binding Wire Wrapping Machine,
In Braided Pipe Coil HDPE Automatic Pipe Coiling Machine, Wrapping Machine For HDPE pipe coil, and Irrigation Industry Tyre Drip Pipe Steel Wrapping Machines are used for their packaging convenience.
The Stretch wrapping machine is also mainly used in Wire& Cables Industry by wire Ring Machine, Wire Rolling Machine, Gemini Tyre Retreading Machine, Automatic Wire ring machine,
Copper Wire Ceiling Machine, Wire Coiler Machine, further PSC Pole Wire Stretching Machine, Single Geared Wire Rolling machine, Italian Model Wire Rolling Machine, MS Wire Wrapping machine,
Iron Wire Ring machine, Manual MS Casting Wire Mesh Packing machine, are used in huge amount.

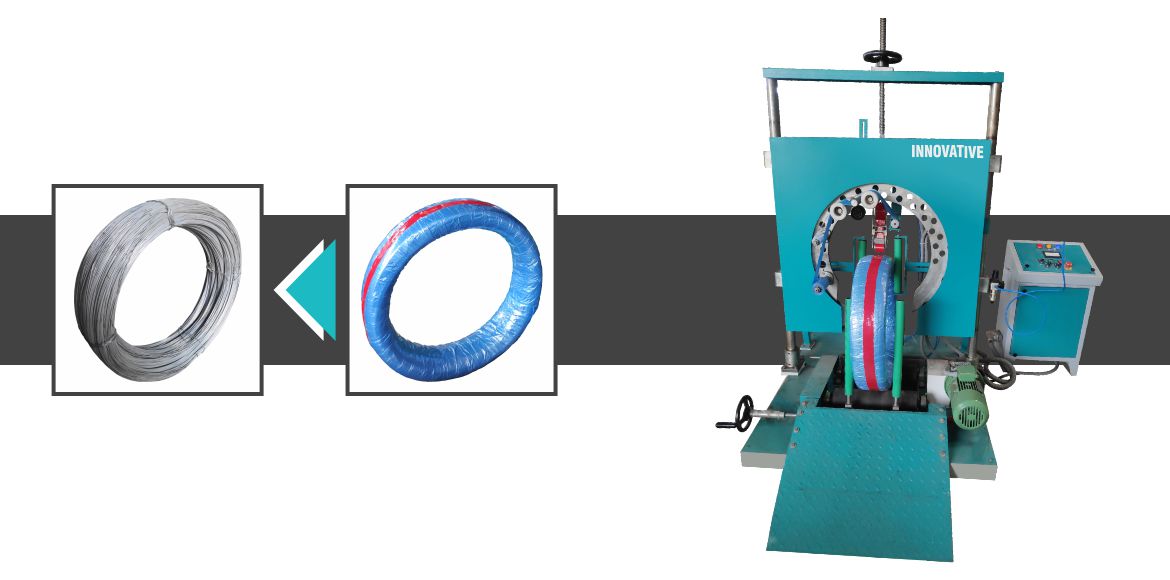

Coil wrapping Machine
The Coil wrapping Machine is a ring stretch wrapper special designed for eye through packing which is an efficient equipments for coils packaging. There are different version coil stretch wrapper per diferent coil size, handling way, packing material and handling requirement.
In market different types coil packaging solution is avialable for a nice and uniform packaging for many products in coil side, such as hose coil, pipe coil, wire coil, bearing, cable…
For coil packing machine, the speed of ring and rollers are adjustable so that it is able wrap the coils by 360 degree. It is the most efficiency packing machine for coil objects and it was approved by thousand’s end user who asking for higher packaging rates and minimal space and lower labor costs.
By eye through packing: Coil packaging machine is able covering the packing material over all surfaces of coils by well controled overlap . By different material, the packaging layer is able eliminates most of the air, dust, moisture from outsize.
There are mainly two types of coil stretch wrapping machine are available:-
1.) Horizontal Coil stretch wrapping machine
2.) Vertical Coil stretch wrapping machine
How to use Coil wrapping Machine:-
1.) First of all put product in machine.
2.) Then press START button.
3.)Automatic wrapping & tapping will be start just after starting machine.
4.)The machine will be stop on which count you had set.
5.)Lastly Start ejector after starting that product will come outside.
Advantages Of Coil stretch wrap machine:-
1.) Protection from entry of Dust, Moisture, Foreign Particles
2.) Protection from Tamper
3.)Uniform/ Consistent Packing
4.) Saves Packaging Labour cost and Time
5.) Globally favoured form of Packaging.
There are also various features available in Coil stretch wrapping machine:-
1.) Adjustable Film Overlap
2.)PLC Based Operations
3.) Automatic cutting and holding of film.
4.)Adjustable stretch ratio.
5.) Vibration free Operation
6.) Logo PLC base operation for timing of wrapping
7.) Rotation, Cutting, ejection
8.) Advance paper relish system.
Difference between Horizontal Coil packer Machine & Vertical Coil Wrapping Machine:-
Suppose you have coil based product to wrapped and you are confused between Horizontal and Vertical Coil wrapping machine about which should be used to wrap that.
So we are clearing this confusion with the help of distinguish between them.
When self weight of product coil is less than 25kg, Inner diameter is 200mm to 500mm, Outer diameter is 300mm to 700mm, width is 50mm to 150mm then we prefer Horizontal Coil wrapping machine.
Therefore, when Self weight of product coil is higher than 50kg, Inner diameter is more than 400mm, Product Coil Outer diameter is more than 600mm,
Width is 200mm to 500mm then we suggest you to go with Vertical coil wrapping machine.
Also, In Horizontal wrapping machine product is wrapped in Horizontal Direction and In vertical wrapping machine product is wrapped in Vertical Direction.
Limitations Of Horizontal and Vertical Coil wrapper :-
If Inner diameter of product coil is low, Outer diameter is low, & width is also low but self-weight is high in that case also do not pick Horizontal Coil wrapping machine because
then there is difficulties in loading & unloading.
If Inner diameter of product coil is more than 400mm, Outer diameter is more than 600mm, & width is 200mm to 500mm but self-weight is low in that case also do not choose
Vertical Coil wrapping because then finishing won’t come in wrapping.
Types of Horizontal Coil wrap Machine:-
There are mainly two types of Horizontal wrapping machine regarding conveyor system.
1.)Automatic Horizontal Coil wrpper machine
When self weight of product coil is less than 25kg, Inner diameter is 200mm to 500mm, Outer diameter is 300mm to 700mm, width is 50mm to 150mm then
we prefer Horizontal wrapping machine.
Tapping System type Machine:-
There is one other type of horizontal coil wrapping machine also existing which is called Tapping system.
In this we can put tap on the outer surface of coil for your company branding.
In which Industry uses:-
It is used in different industry like
Binding wire industry,
G.I.wire Industry,
Small tyre Industry like car,bike,three wheeler,
Pet strap industry, Bearing Industry,
Housing Cable & wire Industry,
Flexible pipe Industry like Garden pipe, corrugated pipe, Braided pipe.
2.)Automatic Horizontal Coil wrap machine with Conveyor system
First of all,suppose your production rate is very high and your product is coming from conveyor in that case with the use of automatic horizontal coil pack machine with conveyor system
product handling is getting very easy.
Secondly, Your product weight is too high but your product width is too small in that situation you can also go with automatic horizontal coil packing machine with conveyor system.
It is used in
steel strip coil,
small width steel coil,
small width G.I.wire industries.
