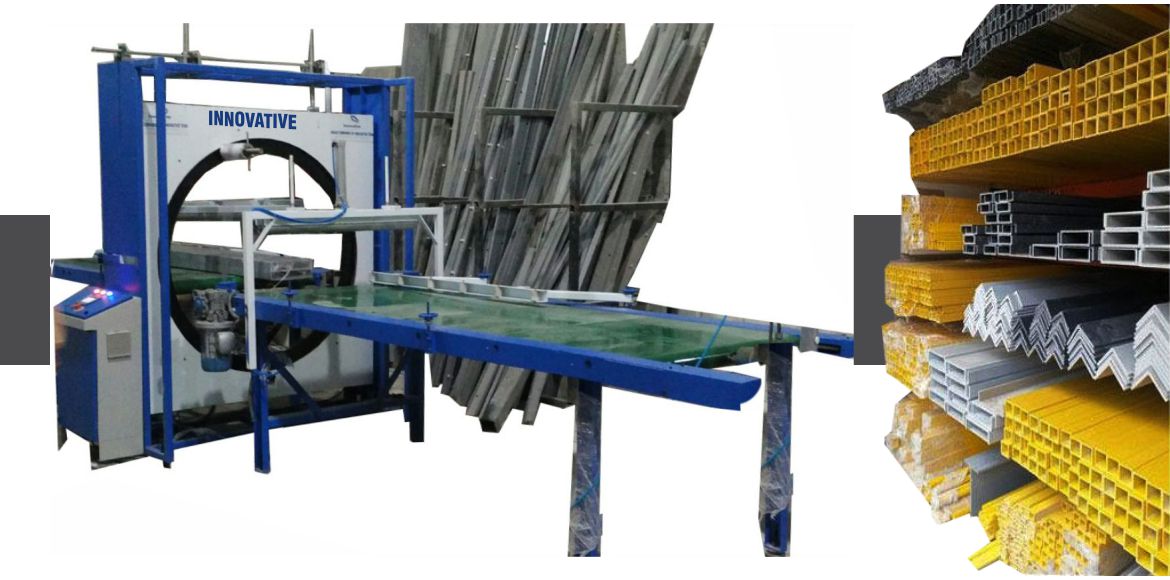

FRP Profile Stretch Wrapping Machine

FRP Profile Stretch Wrapping Machine are ideal for long loads that can not be stretch wrapped on a conventional turntable or rotary tower type machine.

Examples of products that are well suited for orbital wrapping pipe, plastic extrusions, carpet rolls, lumber, aluminum siding, and many other long products.

Ring sizes from 15 inch to 90 inch are available to accommodate virtually all orbital wrapping applications.

FRP Profile Stretch Wrapping Machine

Frp profile packing machine use to packing for giant size broad and height like doors, Frp profiles and steel pipes several more.. we have a tendency to build customize orbital stretch packing machine in Republic of India and conjointly exports altogether over worlds the way to

work huge Frp profile stretch wrapping machine:-

virtually everything is completed mechanically on the totally automatic ring packing machine. All you have got to try to to is load a product onto the conveyor and so the merchandise can move forward automatically. once the product arrives at the packing station,

it doesn’t even ought to be wrapped in foil, it ought to be done mechanically. And once the ultimate product arrives when wrapping the film, the wrapping machine can automatically recognize

that the final product has arrived with the assistance of the merchandise sensor, and so the automated wrapping machine will even cut the film automatically, and also the product will proceed the output tape.

thus essentially we have a tendency to mean that you just solely ought to do the loading and unloading of the product. Everything else is completed automatically. once your product hits a conveyor, this orbital stretch wrapper machine will are available in handy.In this situation,

you don’t need to transfer and transfer as well. we have a tendency to build custom packaging machine thus we are able to make the machine in line with the height, weight and breadth of your product.

benefits of profile stretch film packing machine:-

Protection against scratches throughout transport.

The packaging method are often automated.

style of packaging accepted worldwide Protection against dust,

chumminess and foreign particles.

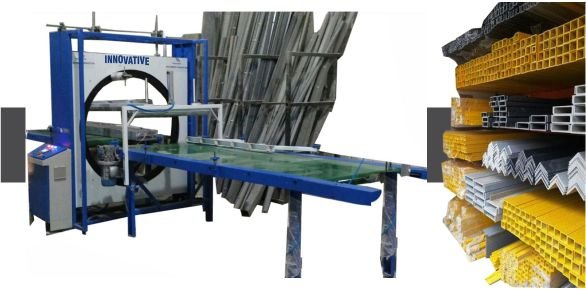

FRP Profile Stretch Wrapping Machine for packing aluminium profile  in film.

Enquiry

Enquiry Form

    captcha
    Video
    Specification
    WORKING PRODUCT DIAMETERLength : 1500 mm to 10000 mm
    Width: 50 mm to 1200 mm
    Hight: 50 mm to 600 mm
    Weigth: 10 kg To 1000 kg
    We Provide According Your Product Size.
    DIAMETER OF ROLL (STRETCH FILM)CORE ID:75 MM
    OD: UP TO 150 MM
    WIDTH:100 MM TO 200 MM
    WRAPPING MATERIALLDPE Stretch film (17 to 35 micron)
    WRAPPING MACHINE SPECIFICATIONWrapping ring: 500 To 2500 mm
    Ring Roller: Teflon material or M.S
    Power ring roller: 2 nos M.s rubber coated
    Cutting blead: HSS material
    Air cylinder: aira make
    solenoid valve: aira make
    Roller belt: fanner make
    Body: power coated
    CONVEYOR SPECIFICATIONIn Feed Conveyor : 5 to 12 Feet
    Out Feed Conveyor :5 To 12 Feet
    Conveyor width : 300 To 1500 mm
    Conveyor belt: pvc green belt or roller
    Pumetic Holding cylinder: aira make
    MOTOR SPECIFICATONRing Motor: 1 HP
    Conveyor Motor: 1 Hp (2 nos)
    bharat Belly Or Crompton Or roto motive make motor use as per availability
    MOTOR DRIVE (V.F.D)Ring Motor Drive: 1 HP
    Conveyor Motor Drive : 1 Hp (1 nos)
    Crompton Or L & T Make drive use as per availability
    MOTOR WORM GEAR BOXConveyor Motor Gear Box : 1 Hp (2 nos)
    PANEL SPECIFICATION12 X 8 i/0 PLC : Panasonics or selec make
    HMI : Panasonics or selec make
    Sensor : proximity sensor
    Branded mcb and switch
    Branded SMPS and relay card
    Branded cooling air
    MACHINE WEIGTHApprox. 1500kg
    OUR REQUIREMENT ON YOUR FLOOR3 phase connection + Neutral + Earthing
    Proper floor (according our drawing )
    Air connection [ 5 bar pressure 2 CFM ]
    4 core , 2.5 mm wire [for machine power connec-tion ,as per your equipment ]
    8 MM Pu pipe [ For Air connection ]
