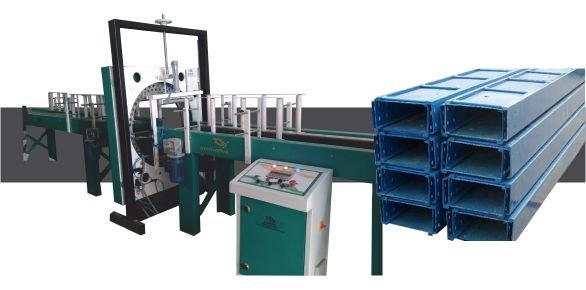

Orbital Stretch Wrapper

 Orbital Stretch Wrapper Machine is Basic Rough & Tough solution. It is economical solution for small Industry needs. In this wrapping will be done automatically but in starting
you have to wrap film on product by own after film wrap film cutting and pushing it will also be manual.

Advantages:-
1.) Protection from scratches in transit.
2.) packing process can be automated.
3.) Globally accepted form of packing.
4.) Protection from dust,moisture, & Foreign particles.

Orbital Stretch Wrapper

The Manual Orbital Stretch Wrapping Machine is a rough and tough basic solution. It is an economical solution for the needs of small industry. In this package, it will be done automatically but at first, you need to wind the film on the product by yourself after cutting the film, and the pushing of the film winding will also be manual.

Advantages of low cost Orbital Wrapping Machine:-

Protection against scratches during transport.
The packaging process can be automated.
Form of packaging accepted worldwide.
Protection against dust, humidity and foreign particles.

Manual Orbital Wrapper Machine Price:-

In this paragraph We manufacture the Customize Wrapping Machine, so the price depends on the product size, such as height, width and length. Firstly there is a minimum and maximum price range available from 1.00,000 to 5.00,000.

features available in this Manual Orbital Stretch Wrap Machine :-

1.)Can be supplied for any length and cross section of any product-single/ bundle
2.)Variable speeds for conveyors and ring wrapper
3.) Completely automatic cycle of operation – including holding the film initially and cutting the film finally
4.) Overlap of film can be varied as desired
5.) One stroke lubrication and very low maintenance requirements
6.)Easy operation with the state-of-the-art Programmable Logic Controller (PLC)
7.) Semi Automatic and Automatic models available
8.)Cycle time adjustable
9.) For use with long length products
10.) Pneumatic film cutting available

Enquiry

Enquiry Form

    captcha
    Video
    Features :

    High quality

    save Labor

    Dust proof and water proof product.

    uniform packaging

    Auto Pneumatic Guide for Product.

    Adjustable guide for all products.

    Automatic film cutting.

    Automatic product holding.

    Heavy conveyor structure.

    Auto product sensor base operation.

    No product NO wrapping system.

    Film saving up to 70 %. (stretch film)

    Stretch Film is Cheaper Then other packing material.

    At Starting Point & ending Point – Wrap can be adjusted by from control panel.

    Speedy Pack & Labor Saving



    Specification
    WORKING PRODUCT DIAMETERLength : 1500 mm to 10000 mm
    Width: 50 mm to 1200 Inch
    Hight: 50 mm to 500 mm
    Weigth: 30 kg To 1000 kg
    We Provide According Your Product Size.
    DIAMETER OF ROLL (STRETCH FILM)CORE ID:75 MM
    OD: UP TO 150 MM
    WIDTH:100 MM TO 200 MM
    WRAPPING MATERIALLDPE Stretch film (17 to 35 micron)
    WRAPPING MACHINE SPECIFICATIONWrapping ring: 500 To 2500 mm
    Power ring roller: 2 nos M.s rubber coated
    Roller belt: fanner make
    Body: power coated
    CONVEYOR SPECIFICATIONIn Feed Conveyor : 300 mm
    Out Feed Conveyor :300 mm
    Conveyor width : 300 mm To 1500 MM
    Conveyor belt: roller
    MOTOR SPECIFICATONRing Motor: 1 HP
    MOTOR DRIVE (V.F.D)Ring Motor Drive: 1 HP
    MOTOR WORM GEAR BOXConveyor Motor Gear Box : 1 Hp (2 nos)
    MACHINE WEIGTHApprox. 400 To 1500kg
    OUR REQUIREMENT ON YOUR FLOOR3 phase connection + Neutral + Earthing
    Proper floor (according our drawing )
    Air connection [ 5 bar pressure 2 CFM ]
    4 core , 2.5 mm wire [for machine power connec-tion ,as per your equipment ]
    8 MM Pu pipe [ For Air connection ]
