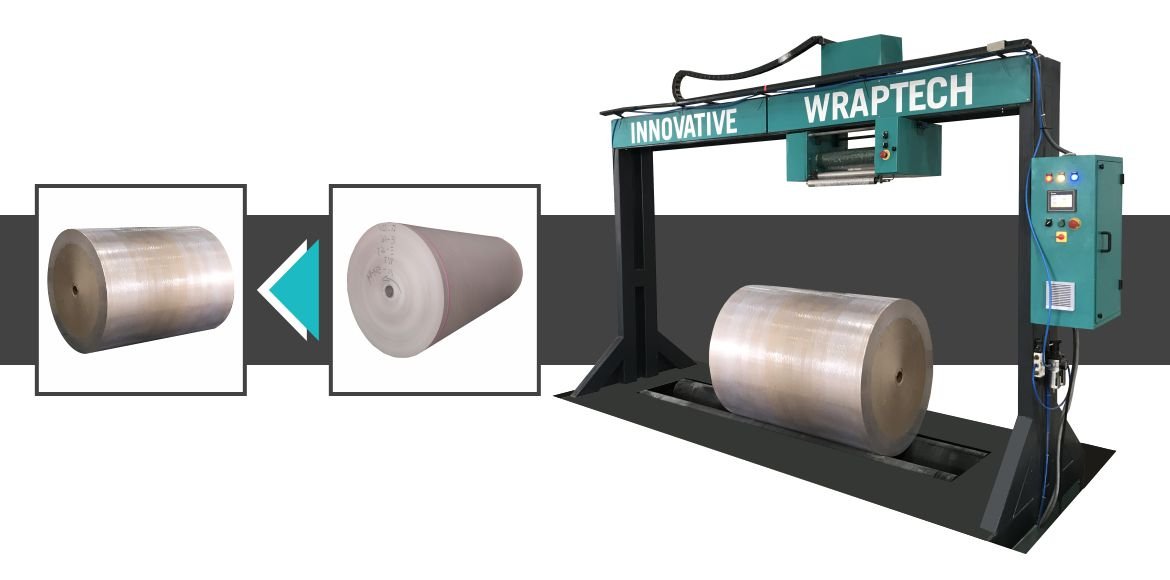

Roll Wrapping Machine

When your product is in Round shape and you wanted to full pack it then that type of packing machine we called Radial Reel Type packing machine. Radial Reel wrapping machine is
designed to apply layers of film across the whole outer surface of the Reel.
Reel wrapping machine is specially designed to wrap paper roll, Laminated roll & many Industrial product.

There are also three types of Roll Wrapping Machine based on size:-

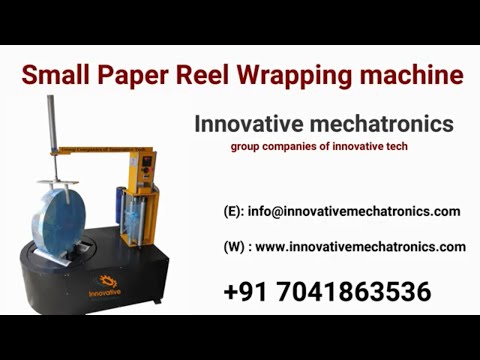

1.) Manual Roll Wrapping Machine
2.) Automatic Roll Wrap Machine
3.) Automatic Roll Wrapper Machine

1.) Manual Roll stretch Wrapping Machine:-
It is a basic roll wrapper machine. It is economically affordable to you. But this machine has certain advantages like there is no film saving system is available. Only upto 20% Film-saving can be done.
The overlapping system is also not adjustable. It is fix & machine speed is too fix.

How manual roll wrapper works?
First of all you have to mount/place your product on machine. Then you will put stretch film manually on product. After putting film on product when you will start the machine
then you had set some counts on counter meter that time machine will Turn. After product packing machine will automatically stop. You have to cut film manually and unload your product.

2.) Automatic Roll wrapper
When your production rate is high and film consumption is also high then you should choose this machine. It is fully heavy duty model. In which almost every problem solution is available.
Like Pre-stretch System Unit system is available.Which main purpose is your film saving can stretch upto 250%. Now we have designed Power pre-stretch system With that machine is eligible to stretch film up to 250% even up to 90micron film.
Up-down Sytem is also avaiable there. With this you can wrap any big size diameter products. Also you can adjust central positioning,too.
Overlapping system is available,too. With this you can adjust overlapping of your stretch film.and also you can use any width film.

roll wrapping machine Ejector system
is there for helping you for heavy to havt products Unloading. You just have to give your machine on pit for protecting loading-unloading problems of your product.
So,according to that we have designed a Heavy structure machine.

3.)Automatic Roll wrapping with Pallet wrapping:-
When you have industry in which some products are round some in square and some in rectangular shape for that we have designed a Combo machine in which your pallets are
getting wrapped and with same machine you can wrap Round shape product like Paper Roll,etc.
We have programming this machine in a way that with the help of One Touch Your Radial machine will convert into Pallet machine.

The longitudinally applied wraps are moved along the periphery with uniform overlap forming a cocoon type packing. This packing is completely Moisture & Dust proof and protects the product.

The Roll Wrapper is state-of-the-art machine having provision for wrapping reels over a wide range of diameters and lengths.

If you required you can designed this Two-in-One machine can be instantaneously switched over from Reel Wrapping mode to normal pallet stretch wrapping mode by a selector switch.
Further, If you need then this machine can be easily integrated into conveyor lines.

Paper, Film, Foils, etc., in Reel form, cannot be easily wrapped with protective wrappers manually due to their heavy weight.

This method of packing gives the reel, protection from dust & moisture and ensures longer storage life while keeping the packing cost very much low, compared to packing them with Craft Paper / Hessian cloth etc. Industries like Paper Mills, Film Manufacturers, etc., can install this machine and save enormously in their packing costs, in labor costs, in time taken for packing, etc.
There are certain features available in these machine:-

1.)Can be used as Roll Wrapper and Pallet Wrapper & Change-over is by a single switch.
2.) Counter gives Stretch % applied & quantity of Film consumed in each Roll / Pallet.
3.) Provision for wide range of roll diameters.
4.) Various levels of protection can be achieved by using flexible control of turn table and Roll speeds.
5.)Completely automated machine.
6.)Sturdily built for handling reels upto 1.5 tonnes by weight.
7.)Low profile height of turn table for easy loading and unloading of reels.
8.)Pit mounting of machine is possible so that loading & unloading of Rolls is at Ground Level.
9.)Applies pre-stretched film delivered from State-of-Art Powered Pre-Stretch Unit.
10.) Film stretch percentage can be easily adjusted to optimise film consumption and provide sufficient protection.
11.)Ideally suited for paper, film foil, tyrecord fabrics and similar materials produced in reel form.
12.)Reduce use of film with the stretching size of film with our unique reel wrapping machine.

This machine will pay back its cost very soon, because of these advantages. Which are as follows:-
1.) Protection from moisture dust and Foreign Particles
2.) Save Packaging time and Labour
3.) Prevents telescoping of film rolls
4.) Easy identification of wrapped product
5.) Globally accepted form of packaging
6.) Uniform packing

It can be applied in various industries Like Film Rolls, Laminated Rolls, BOPP Tapes, Paper rolls, wire Rolls. Let’s explain all these uses in particular fields:-

1)Paper industry: The paper industry includes companies that use wood as a raw material and produce paper, cardboard and other cellulose-based products. The paper industry is a global market, which is why it uses different types of machines for different operations. The paper industry mainly uses a reel winder to package and provide safe and efficient layers on its products. If you plan to start the paper industry, this machine is necessary to answer your packaging questions.

2) Radial Tire Industry: The radial tire industry is specially designed for vehicle tires. Overcoming a tire wrapping issue can be easily resolved with the coil wrapping machine. Many industries use this machine for its ease.

3) Laminate Roll Industry: Lamination is the process of applying a thin layer of plastic to sheets of paper or cardboard to enhance and protect the printed rolls. Lamination is often used for rolling. covers various uses of the laminate industry Coil Wrapping Machine.

4) Irrigation Industry: Irrigation is the process of applying controlled amounts of water to plants when needed. Irrigation helps grow agricultural crops, maintain landscapes, and green disturbed soils in dry areas and during periods of below-average rainfall. In the process of irrigation, they use various types of machines and also use some machines for packing purposes.

They are as follows:

1) Flat Drip Wrapping Machine

2) Round Drip Wrapping Machine

5) Commercial Rubber Industry: The commercial rubber industry produces huge quantities of commercial tires. The wrapping machine is considered for the ease of wrapping their commercial rubbers.

6) PP rope industry: PP rope bundle is produced by various PP rope industries. PP ropes which have good knotting ability and good moisture resistance also have high mechanical durability.For easy packing, PP rope industry uses wrapping machine to wrap PP ropes.

7) Cloth roll industry: Cotton cloth roll is wrapped with stretch film during packing process. packaging. We make custom machine according to fabric roll diameter and width. It is mainly used in the cotton industry. It is a dust and moisture resistant machine.
